I was totally game. The best kind of home-improvement project -- when you're learning on the job -- is at someone else's house!
The weekend of their anniversary, Abram & Leigh were off in upstate New York, but unfortunately, it rained all weekend. Luckily the following weekend they were once again in New York (at a wedding), and the weather was perfect.
Finding all the online basketball-court templates wanting, we decided to just do it ourselves with the power of geometry and duct tape. Here's how you do it:

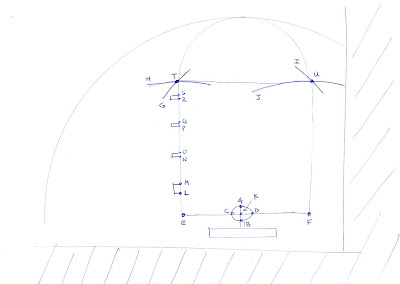

1. Drop a plumb from the hoop to determine points A, B, C and D. Draw lines AB and CD. The intersection is K, the origin.
2. Extend line CD to EF with segments EK and FK each being 5'10". If I were doing this again, I'd also drop the plumb from the ends of the backboard to ensure that EF is in parallel.
3. Geometry baby! Triangles EFT and EFU both have right-angles and two dimensions are known. Use this info to make arcs G, H, I and J. The arc intersections give you points T and U. Note that each painted line has a width of 2" and the inner foul line should be at 13'7".
4. LE = 21", LM = 12", MN = 36", NO = 2", OP = 36", PQ = 2", QR = 36", RS = 2". All blocks have an 8" depth but we decided to offset them 2" and have a 6" depth.

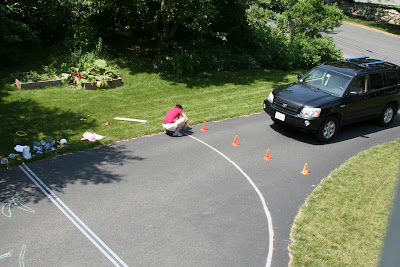

5. To make the three-point arc, measure 19'7" from K with a non-stretchy line. We just used the tape-measure and rotated in sync.
6. To make the foul-line arc, measure 5'10" from the center of the foul line.
We were originally hoping the A&L Dancy kids would be around to help entertain the little ones. Fortunately, Aidan had fun with the lawn mower and Sierra could be corralled for minutes at a time.

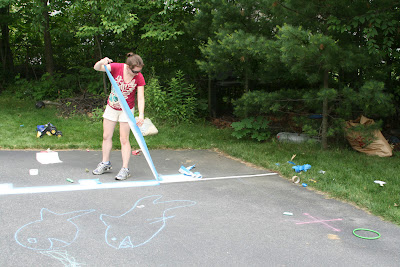

All our measurements were to the inside of the line, then we used masking tape of the correct width (2") to create a placeholder for the line. Then we used duct tape to mark the outside of the line. I was sore for 4 days from all this bending over -- that's what she said! Topic for discussion: when did I get so old?
We couldn't NOT do the semi-circle at the top of the lane. This tight circle was a little too much for the duct tape, as it kept folding and occasionally not bending well enough. I used a knife to create the intersection between the two arcs.
We originally intended to paint with rollers, but it bled. Instead we used my paint sprayer. For paint we're using latex zone-marking paint.
Even though it looked like we had enough buffer around the lines, there was a clear halo of paint from the sprayer. We tried scrubbing it off, but our kids woke up from their naps. We'll correct this in v2.0.
Still, it looks pretty good!
